Conversion of a Polyol and Isocyanate at Gel Point

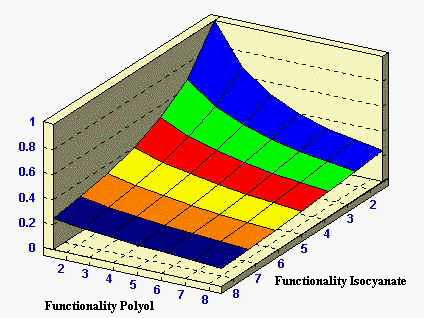

wpe7.jpg (23658 bytes) Depending on the functionality of the polyol and the isocyanate the reaction leads to a gel at different degree of conversion. A di functional polyol and a di functional isocyanate would not gel even at complete conversion. (1.0). A difunctional polyol and a trifunctional isocyanate would gel at about 60 % conversion (0.6)


Conversion

at gel point

The reaction of a polyol with an isocyanate leads to an increase in viscosity and to gelation. After gelation. the reaction continues at a slower rate to complete reaction. Higher functional polyols and isocyanates lead to earlier gelation at a lower conversion of the hydroxyl groups and the isocyanate. The gel point can be estimated using the equation.
a crit. = 1/(f-1) f = average functionality of reactants, a crit. = gel point.
The actual gel point is at higher conversion due to ineffective cyclic links. Past the gel point the polymer stops to flow and the viscosity approaches infinity.
